HYDRO-ARC 6500-S-JSBC

MULTI-FUNCTION
DC WELDER / AC GENERATOR
JUMP STARTER / BATTERY CHARGER

“6.5KW
Welder: 300 AMPS DC
Generator: 6.5 KW, 120/240 VAC

Perfect for service trucks and wreckers!

INNOVATION

Welding with Mobile Power

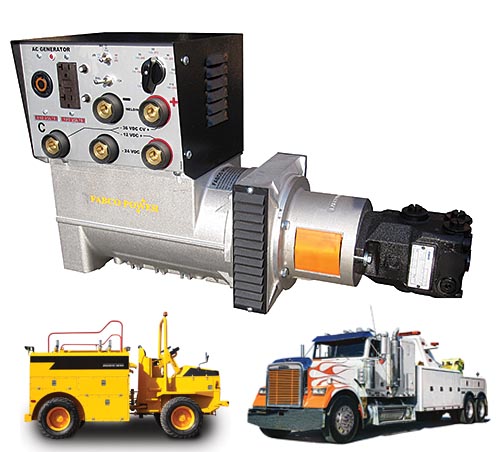

Fabco’s Hydro-ARC-S-6500 JSBC hydraulically driven multi-function DC Welder/AC Generator combo is perfect for the mobile power needs of Service Trucks & Wreckers.


OUTSTANDING FEATURES

  • Lightweight Only 135 Lbs.
  • Compact Size 27L" x 16H" x 8W"
  • 6,500 Watt AC Generator
  • 300 DC Welder
  • CV MIG / TIG
  • Jump Starter 12V, 24V, 36V, 48V
  • Battery Charger 12V, 24V, 36V, 48V
  • Optional Pressure Compensation Flow Control
  • Exclusive "Fury Precision Power Coupler Housing" (patent 5,908,183)
  • Weld, Jump Start, Battery Charge and Operate AC tools, air compressors, lights and much more!

SPECIFICATIONS

Welding Amps 300 DC
Watts 6,500
AC Volts 120/240
Strike Voltage 80 VDC
Jump Starting Amps 400 DC
Battery Charge 400 DC
Amps AC 50 / 25
Weld Voltage 22 - 32 VDC
Voltage AC 120/240
GPM 11, 15, 21 GPM
Dimensions 27"L x 16"H x 8"W
Weight 135 LBS
Price List

PATENTED, FURY PRECISION POWER COUPLER. This ensures perfect alignment and provides chatter & vibration free operation thus guaranteeing extremely long coupling life.

Fury Precision Power Coupler Housing

OPTIONAL EQUIPMENT

Optional Control Panel

The Super-V Cooler

  • Reservoir - 3 gal. capacity
  • Heat Exchange with 12 Volt DC Fan

The Super-V coolers’ unique compact design pulls high velocity air through the “V” cut-out section in the reservoir removing the heat from the surrounding oil flow. The system is a completely sealed to prevent moisture or small particles from contaminating the hydraulic oil. The filter cap will vent air at 4 PSI.

DIMENSIONS: 16.5”W x 13”D x 12.4H

Optional Pressure Compensating Flow Control

Pressure Compensating Flow Control

To maintain a constant
generator RPM
and voltage output

Optional Pressure Compensating Flow Control

Protective Cover

Fitted waterproof cover protects the Hydro-Arc from the elements when not in use.


Pre-Wired Cables

Welding Rod Holder

Grounding Clamp
