BELT DRIVEN GENERATOR | POWER MITE | UNDER HOOD GENERATOR

Fabco Power

Setting the Standard in Mobile Power

Power-Mite
Patented Innovation


Trucks Boats Cars Fire Trucks Scissor Lifts Farm Equipment Emergency Vehicles Rescue Equipment Airport Maintenance Vehicles & many more
Converts Any Vehicle Engine Into an AC Generating System	Power Mite will operate all types of tools and appliances including: • Saws • Grinders • Marine Air-conditioners • Microwaves • Drills • Impact wrenches • Sanders • Polishers • Soldering equipment • Emergency and floodlights • Pumps • Blowers • Compressors • Smoke ejectors • Life saving equipment • Electric motors • Radios • Televisions • Refrigerators • Stoves • Plastic pipe fusion equipment and Much Much More...

POWER MITE ...Instant AC Power wherever you go
Power Mite is a reliable, heavy-duty mobile power source that will provide AC electric power when and where you want it. The Power Mite will operate all AC or AC/DC tools, appliances and most 1 H.P. motors
POWER MITE ...Harmless to your engine
The Power Mite does not alter or affect your vehicle engine’s own electrical system. It will not discharge your vehicle’s battery so long as the engine’s DC generator is functioning properly. The Power Mite is designed to operate at between 1200 to 1500 engine RPM’s–speeds that keep the engine cool and attain maximum efficiency and economy of operation. An optional voltage regulator (see back cover) provides constant voltage at varying speed.

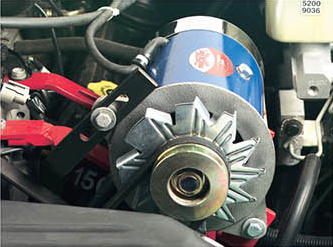

POWER MITE ...USED ON ALL VEHICLES
Power Mite kit includes universal mounting brackets for quick installation adaptability to any vehicle, including autos, trucks, boats, scissor lifts, tractors, auto wreckers, recreational vehicle, fire fighting & rescue vehicles, ambulances and more...converts any vehicle engine into an AC generating system!

POWER MITE ...SAFE

Power Mite has an isolated ground which provides absolutely safe operation to the user. Fire fighters are especially impressed with Power Mite’s® safety feature as they handle power tools in and around water constantly. Power Mite is not affected by grounds or shorts. It will also withstand dead shorts for long periods without harm to the operator or unit. This unique safety feature with a patent held by Fabco Power and unlike any other AC power generating system.

FEATURE	BENEFIT
Rotors dynamically balanced for high speed operation	Longer bearing life.
Oversize “303” sealed, heavy-duty bearings used at both ends	Longer bearing life.
4 heavy-duty brush holders and brushes (other manufacturers use only two)	Less wear, longer brush life.
Largest size slip ring of all vehicle mounted AC alternators.	Less heat generated longer life
Automatic overload protection device	Prevents damage to generator
Plated hardware	Prevents Rust
Most Compact & lightest	Fits into small engine compartments compartments of newer vehicles
Field Coils double taped with fiberglass & Cotton	Prevents shorts in hostile environments. Makes Power Mite the most durable belt driven generator on the market

SPECIFICATIONS
Housing: End Bells: Pole Shoes: Slip Rings: Brushes: Field Coils: Armature:	High magnetic steel tubing Alamag alloy castings High magnetic steel forgings Copper alloy Four, self adjusting Baked with waterproof varnish Nickel alloy with patented winding of high-temperature-resistant coated wire; impregnated and baked with waterproof epoxy.

DIMENSIONS	WARRANTY
	Each Fabco Power generator is warranted to the original owner to be free from defects in material or workmanship under normal use and service for One (1) year from the date of purchase. Our obligation under this warranty is limited to replacing or repairing, at our option, any part or parts proved to be so defective which are returned freight prepaid.

Model	Volts	Amps Peak	Watts Peak	Watts Continous	RPM	Weight
PM-110	120	29	3500	2500	3600	27 lbs.
BLUE-MAX	120	37	4500	3000	3600	32 lbs.
PM-220	220	15	3500	2500	3600	27 lbs.
PM-220 50HZ.	220	13	3000	2000	3000	27 lbs.

	Power Mite Voltage Regulator, optional for the Power-Mite 110®, created for the Power-Mite Blue-Max and PM-220 models, provides constant voltage at varying engine speeds. The innovative design of the Power Mite voltage regulator is unique. There are no relays, transformers or moving parts to wear which make this unit extremely reliable under the most severe conditions. Voltage Regulator Patent #6528973

FABCO POWER = CLEAN POWER Fabco Hydraulic generators are enviromentally clean, and non-polluting. Fabco generators do not require a second engine and Save You Money. CLICK HERE
